Camera Auto Tracking PTZ AVer PTC310HWV2

Thương hiệu: AVer   |   Tình trạng: Còn hàng

Mô tả:

 AVer PTC310HWV2

  • Cảm biến 1/2.8" 4K Exmor CMOS 8mpx 60fps
  • Tốc độ màn trập 1/1 đến 1/32.000 giây
  • Zoom quang 12X
  • Điều khiển camera - Giao thức VISCA (RS-232 / RS-422 / IP) PELCO-D & PELCO-P (RS-232 / RS-422)
  • CGI (IP) ONVIF
  • Giao diện: PoE+, RS-232, RS-422, USB 3.1 Gen 1 (Type-B), Line In, HDMI, 3G-SDI, DC 12V
  • Miễn phí vận chuyển tại HN & HCM Miễn phí vận chuyển tại HN & HCM
  • Bảo hành chính hãng toàn quốc Bảo hành chính hãng toàn quốc
  • Cam kết chính hãng 100% Cam kết chính hãng 100%
  • 1 đổi 1 nếu sản phẩm lỗi 1 đổi 1 nếu sản phẩm lỗi

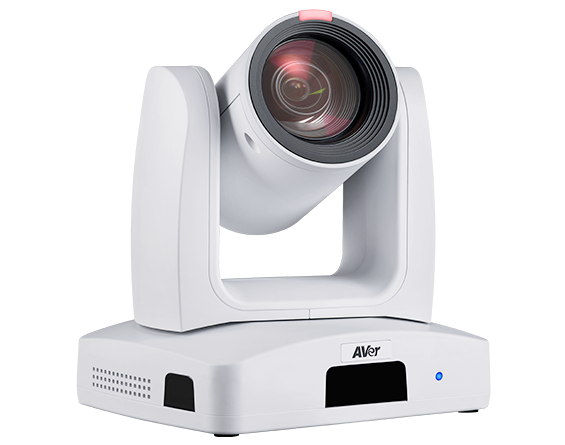

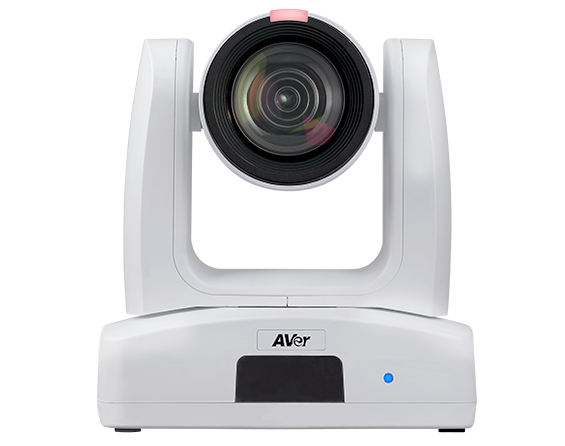

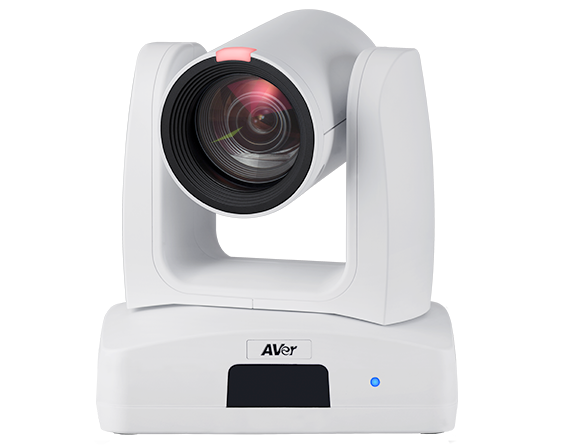

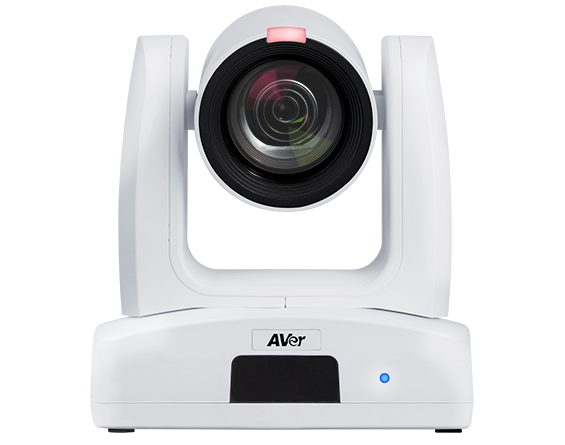

AI Auto Tracking PTZ Camera

The PTC310HWV2 AI Auto Tracking PTZ Camera makes powerful and reliable Pro AV capability available to everyone. Drawing inspiration from the AVer Professional PTZ Camera family, the PTC310HWV2 features in-house AI functions like Presenter Mode, Zone Mode, and Hybrid Mode auto tracking, thanks to Human Detection processing. Combine the 12X Optical Zoom lens and Full HD 1080p resolution with hybrid auto tracking and smooth PTZ functions for broadcasting, streaming, or recording. Your exciting journey of audio and video capturing starts here!





Upgrade Your Cameras to NDI®!

Upgrade your AVer cameras with NDI®|HX. A separate NDI®|HX license key is required for each camera, and internet connection is required for initial activation. To learn more about NDI® upgrade, please visit



Full HD 1080p Output Resolution

Equipped with Full HD 1080p resolution, the PTC310HWV2 provides ultra-precise auto tracking. The PTC310HWV2 also features a Sony sensor that maintains a truly impressive video performance through every frame of your production.



12X Optical Zoom & 12X Digital Zoom

The zoom power of the PTC310HWV2 reaches an incredible 144X (12X optical and 12X digital zoom). It works even while the camera is panning and tilting, allowing you to highlight content and rapidly change shooting angles. Operate a closer and clearer video feed with the unbeatable PTZ performance of the PTC310HWV2.



Click & Track

With the PTC310HWV2, you can simply click on a target to quickly adjust the shooting angle and initiate precise tracking, ensuring you can redirect in an instant. This advanced feature is easy for anyone to operate via both remote control and intuitive Web UI.

Presenter Mode

Track your target everywhere with Presenter Mode. This feature gives presenters the flexibility to leave the stage and interact with the audience, all while being continuously tracked. The camera stays locked on its target, even if other people or objects get in the way.



Zone Mode

Zone Mode enhances your ability to capture content on multiple displays. Create up to four Content Zones to steadily capture the content on display rather than the presenter’s movements.

Hybrid Mode

Hybrid Mode provides the utmost freedom of movement for performing artists. Use preset areas for segment tracking to have the camera automatically snap to a full view of each preset location as the artist moves between it. If the artist leaves the preset areas, the camera seamlessly transitions to tracking mode and follows the artist wherever they go.


  .
  • Camera
    • Image Sensor:1/2.8" 1080p Exmor CMOS
    • Effective Picture Elements:8 Megapixels
    • Output Resolution:1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50
    • Minimum Illumination:0.5 lux (IRE50, F1.6, 30FPS)
    • S/N ratio:> 50dB
    • Gain:Auto / Manual
    • TV Line:900 (Center/Wide)
    • Shutter Speed:1/1 s to 1/32,000 s
    • Exposure Control:Auto, Manual, Priority AE (Shutter, IRIS), BLC
    • White balance:Auto / Indoor / Outdoor / One-push
    • Optical Zoom:12x
    • Digital Zoom:1X
    • Total : 144X
    • Viewing Angles:DFOV : 78° (Wide) to 7° (Tele);HFOV : 70° (Wide) to 6° (Tele);VFOV : 42° (Wide) to 3° (Tele)
    • Focal length:f = 3.9mm (Wide) – 46.8 mm (Tele)
    • Aperture (Iris):F = 1.6 (Wide) – 2.8 (Tele)
    • Minimum working distance:0.3 m (Wide), 1.5 m (Tele)
    • Pan/Tilt Angle:Pan: +- 170°, Tilt: +90°/-30°
    • Pan/Tilt Speed (manual):Pan: 0.1 – 100°/sec, Tilt: 0.1 – 100°/sec
    • Preset Speed:Pan: 200° /sec, Tilt: 200° /sec
    • Preset Position:10 (IR), 255 (RS-232)
    • Camera Control - Interface:RS-232 (DIN9) / RS-422 (RJ45)
    • Camera Control - Protocol:VISCA (RS-232/RS-422/IP), CGI (IP), PELCO-D, PELCO-P
    • Image Processing:Noise Reduction (2/3D), Filp, Mirror
    • Power Frequency:Auto / 50Hz / 60Hz
  • Audio
    • Channel:2ch (stereo)
    • Codec:AAC-LC
  • General
    • Power Requirement:AC100V-AC240V to DC12V/5A
    • Power Consumption : 19W
    • PoE:POE+
    • Operating Condition:Temperature: 0°C – +40°C; Humidity: 20% – 80%
    • Storage Condition:Temperature: -20°C – +60°C; Humidity: 20% – 95%
    • Dimensions:D=145 mm, W= 180mm, H= 192 mm
    • Weight: 2kg
    • Application:Indoor
    • Security:Kensington slot
    • Remote Control:Infrared
    • Accessories:Remote control, 12V/5A power adapter

  • IP Streaming
    • Resolution:1080p 60fps
    • Network Video Compress Format:H.264 , H.265, MJPEG
    • Maximum Frame Rate:1080p 60fps
    • Bit-rate Control Mode:VBR/CBR (selectable)
    • Range of Bit-rate setting:512Kbps – 120Mbps
    • Network Interface:10/100/1000Base-T
    • Multi-stream Capabilty : 2 (RTSP / Web Page), 1080p 60fps (max.)
    • Network Protocol:IPv6, IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP / RTCP, RTSP, RTMP, VISCA over IP
    • NDI®|HX3 :  N/A
  • Software Tools
    • IP Search and Configuration Tool:Support Windows® 7 or later
    • PTZ Management:Support Windows® 7 or later
    • PTZ Control Panel:Supports iOS & iPadOS® 11 or later
    • PTZ Link:Supports Windows® 7 or later, macOS® 10.14 or later
    • OBS Plugin for PTZ Cameras:Supports Windows® 8 or later, macOS® High Sierra v10.13 or later
    • CaptureShare:Supports Windows® 7 or later, macOS® 10.14 or later
  • USB
    • Connector : USB 3.1
    • Video Format:YUY2, MJPEG
    • Maximum Video Resolution:1080p
    • USB Video Class:UVC1.1
    • USB Audio Class:UAC1.0
  • Warranty
    • Camera:5 Years
    • Accessories:1 Year


* Thông số kỹ thuật có thể thay đổi tùy theo quốc gia và có thể thay đổi mà không cần báo trước.
